KF6015 Auto Focus Fiber Laser Cutter

4
  • 1 (2)
  • 1
  • 1fiber laser cutting
  • 4

Short Description:

KF6015 fiber laser cutter is mainly used for metal plate cutting . 1KW , 1.5KW , 2KW , 3KW , 4KW and 6KW laser power is available, Cutting area is also customized .


  • Model No: KF6015

    • Product Detail

    Product Tags

    1FIBER LASER

    Video

    Application

    Applicable Materials Of Fiber Laser Cutter

    Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate etc.

    Applicable Industries Of Fiber Laser Cutter

    Machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.

    Sample

    sample1

    Configuration

     1FIBER LASER2 Stronger Machine Body :


    The metal body on this cutter has undergone a 600°C heat treatment, and is cooled inside the furnace for 24 hours. After this is complete, it is processed using a plano-milling machine and welded using carbon dioxide. This ensures it has a high strength and a 20 yearservice life.

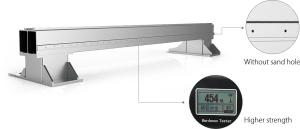

    The Third Generation Cast Aluminum Beam:

             It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

    		  KF60151699

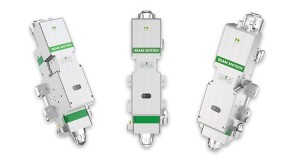

     1FIBER LASER3 Switzerland Raytools Laser Head :

    Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal. Increasing perforation focus length, separately setting perforation focal length and cutting focal length, improve cutting accuracy.

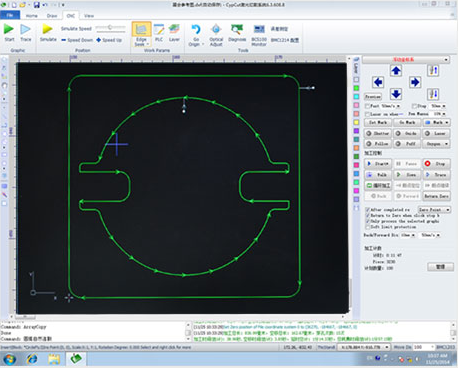

    CYPCUT Control System :

    CYPCUT Control system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

    		 sdiajd; (4)

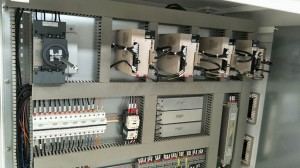

    Japan Panasonic Or Fuji Servo Motor Japan YASKAWA Servo Motor

    1. Adopting Japan Yaskawa servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.

    2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.

    Techinical Parameters

    Model

    KF Series

    Wavelength

    1070nm

    Sheet Cutting Area

    3000*1500mm / 4000*2000mm / 6000*1500mm / 6000*2000mm/ 6000*2500mm

    Laser Power

    1000W / 1500W / 2000W / 3000W / 4000W /6000W / 8000W

    X/Y-axis Positioning Accuracy

    0.03mm

    X/Y-axis Repositioning Accuracy

    0.02mm

    Max. Acceleration

    1.5G

    Max. linkage speed

    140m/min

    Cutting Parameters

    Cutting Parameters

    1000W

    1500W

    2000W

    3000W

    4000W

    Material

    Thickness

    speed m/min

    speed m/min

    speed m/min

    speed m/min

    speed m/min

    Carbon steel

    1

    8.0--10

    15--26

    24--32

    30--40

    33--43

    2

    4.0--6.5

    4.5--6.5

    4.7--6.5

    4.8--7.5

    15--25

    3

    2.4--3.0

    2.6--4.0

    3.0--4.8

    3.3--5.0

    7.0--12

    4

    2.0--2.4

    2.5--3.0

    2.8--3.5

    3.0--4.2

    3.0--4.0

    5

    1.5--2.0

    2.0--2.5

    2.2--3.0

    2.6--3.5

    2.7--3.6

    6

    1.4--1.6

    1.6--2.2

    1.8--2.6

    2.3--3.2

    2.5--3.4

    8

    0.8--1.2

    1.0--1.4

    1.2--1.8

    1.8--2.6

    2.0--3.0

    10

    0.6--1.0

    0.8--1.1

    1.1--1.3

    1.2--2.0

    1.5--2.4

    12

    0.5--0.8

    0.7--1.0

    0.9--1.2

    1.0--1.6

    1.2--1.8

    14



    0.5--0.7

    0.8--1.0

    0.9--1.4

    0.9--1.2

    16





    0.6-0.8

    0.7--1.0

    0.8--1.0

    18





    0.5--0.7

    0.6--0.8

    0.6--0.9

    20







    0.5--0.8

    0.5--0.8

    22







    0.3--0.7

    0.4--0.8

    Stainless steel

    1

    18--25

    20--27

    24--50

    30--35

    32--45

    2

    5--7.5

    8.0--12

    9.0--15

    13--21

    16--28

    3

    1.8--2.5

    3.0--5.0

    4.8--7.5

    6.0--10

    7.0--15

    4

    1.2--1.3

    1.5--2.4

    3.2--4.5

    4.0--6.0

    5.0--8.0

    5

    0.6--0.7

    0.7--1.3

    2.0-2.8

    3.0--5.0

    3.5--5.0

    6



    0.7--1.0

    1.2-2.0

    2.0--4.0

    2.5--4.5

    8





    0.7-1.0

    1.5--2.0

    1.2--2.0

    10







    0.6--0.8

    0.8--1.2

    12







    0.4--0.6

    0.5--0.8

    14









    0.4--0.6

    Aluminum

    1

    6.0--10

    10--20

    20--30

    25--38

    35--45

    2

    2.8--3.6

    5.0--7.0

    10--15

    10--18

    13--24

    3

    0.7--1.5

    2.0--4.0

    5.0--7.0

    6.5--8.0

    7.0--13

    4



    1.0--1.5

    3.5--5.0

    3.5--5.0

    4.0--5.5

    5



    0.7--1.0

    1.8--2.5

    2.5--3.5

    3.0--4.5

    6





    1.0--1.5

    1.5--2.5

    2.0--3.5

    8





    0.6--0.8

    0.7--1.0

    0.9--1.6

    10







    0.4--0.7

    0.6--1.2

    12







    0.3-0.45

    0.4--0.6

    16









    0.3--0.4

    Brass

    1

    6.0--10

    8.0--13

    12--18

    20--35

    25--35

    2

    2.8--3.6

    3.0--4.5

    6.0--8.5

    6.0--10

    8.0--12

    3

    0.5--1.0

    1.5--2.5

    2.5--4.0

    4.0--6.0

    5.0--8.0

    4



    1.0--1.6

    1.5--2.0

    3.0-5.0

    3.2--5.5

    5



    0.5--0.7

    0.9--1.2

    1.5--2.0

    2.0--3.0

    6





    0.4--0.9

    1.0--1.8

    1.4--2.0

    8







    0.5--0.7

    0.7--1.2

    10









    0.2--0.5
