High Quality for Acrylic Laser Cutting Machine - Carbon Stainless Steel Fiber Laser Cutter With Exchanged Table – Knoppo Detail:
Application
Applicable Materials Of Fiber Laser Cutter
Fiber Laser Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, etc.
Applicable Industries Of Fiber Laser Cutter
Fiber laser cutter is widely used for many industry, such as, furniture ,Machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.

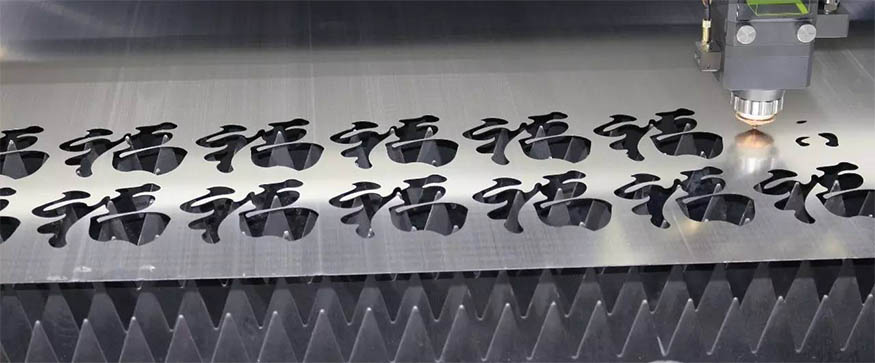

Sample
Configuration
* Rapid exchange between two platforms greatly improves work efficiency.
*Under table extraction.
*Positioning and re-positioning accuracy 0.02mm.
* laser source in 1000W, 1500W , 2000W , 3000W , 4000W , 6000W – Lifespan 100,000 hours.
* Precision Switzerland Raytools laser head.
* Ball screw drive guide rail system.
* Japanese Fuji servo motor drive.
* Taiwan Hiwin guide rails.
* German Schneider Electronics.
* CypCut software including nesting capability – stable and efficient productivity.
* Water chiller and extraction system included.
Techinical parameters
Model |
KE Series |
Wavelength |
1070nm |
Working Area |
3000*1500mm / 4000*2000mm / 6000*2000mm/ 6000*2500mm |
Laser Power |
1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000W |
X/Y-axis Positioning Accuracy |
0.03mm |
X/Y-axis Repositioning Accuracy |
0.02mm |
Max. Acceleration |
1.5G |
Max. linkage speed |
140m/min |
Cutting parameters
Cutting Parameters |
1000W |
1500W |
2000W |
3000W |
4000W |
|
Material |
Thickness |
speed m/min |
speed m/min |
speed m/min |
speed m/min |
speed m/min |
Carbon steel |
1 |
8.0–10 |
15–26 |
24–32 |
30–40 |
33–43 |
2 |
4.0–6.5 |
4.5–6.5 |
4.7–6.5 |
4.8–7.5 |
15–25 |
|
3 |
2.4–3.0 |
2.6–4.0 |
3.0–4.8 |
3.3–5.0 |
7.0–12 |
|
4 |
2.0–2.4 |
2.5–3.0 |
2.8–3.5 |
3.0–4.2 |
3.0–4.0 |
|
5 |
1.5–2.0 |
2.0–2.5 |
2.2–3.0 |
2.6–3.5 |
2.7–3.6 |
|
6 |
1.4–1.6 |
1.6–2.2 |
1.8–2.6 |
2.3–3.2 |
2.5–3.4 |
|
8 |
0.8–1.2 |
1.0–1.4 |
1.2–1.8 |
1.8–2.6 |
2.0–3.0 |
|
10 |
0.6–1.0 |
0.8–1.1 |
1.1–1.3 |
1.2–2.0 |
1.5–2.4 |
|
12 |
0.5–0.8 |
0.7–1.0 |
0.9–1.2 |
1.0–1.6 |
1.2–1.8 |
|
14 |
|
0.5–0.7 |
0.8–1.0 |
0.9–1.4 |
0.9–1.2 |
|
16 |
|
|
0.6-0.8 |
0.7–1.0 |
0.8–1.0 |
|
18 |
|
|
0.5–0.7 |
0.6–0.8 |
0.6–0.9 |
|
20 |
|
|
|
0.5–0.8 |
0.5–0.8 |
|
22 |
|
|
|
0.3–0.7 |
0.4–0.8 |
|
Stainless steel |
1 |
18–25 |
20–27 |
24–50 |
30–35 |
32–45 |
2 |
5–7.5 |
8.0–12 |
9.0–15 |
13–21 |
16–28 |
|
3 |
1.8–2.5 |
3.0–5.0 |
4.8–7.5 |
6.0–10 |
7.0–15 |
|
4 |
1.2–1.3 |
1.5–2.4 |
3.2–4.5 |
4.0–6.0 |
5.0–8.0 |
|
5 |
0.6–0.7 |
0.7–1.3 |
2.0-2.8 |
3.0–5.0 |
3.5–5.0 |
|
6 |
|
0.7–1.0 |
1.2-2.0 |
2.0–4.0 |
2.5–4.5 |
|
8 |
|
|
0.7-1.0 |
1.5–2.0 |
1.2–2.0 |
|
10 |
|
|
|
0.6–0.8 |
0.8–1.2 |
|
12 |
|
|
|
0.4–0.6 |
0.5–0.8 |
|
14 |
|
|
|
|
0.4–0.6 |
|
Aluminum |
1 |
6.0–10 |
10–20 |
20–30 |
25–38 |
35–45 |
2 |
2.8–3.6 |
5.0–7.0 |
10–15 |
10–18 |
13–24 |
|
3 |
0.7–1.5 |
2.0–4.0 |
5.0–7.0 |
6.5–8.0 |
7.0–13 |
|
4 |
|
1.0–1.5 |
3.5–5.0 |
3.5–5.0 |
4.0–5.5 |
|
5 |
|
0.7–1.0 |
1.8–2.5 |
2.5–3.5 |
3.0–4.5 |
|
6 |
|
|
1.0–1.5 |
1.5–2.5 |
2.0–3.5 |
|
8 |
|
|
0.6–0.8 |
0.7–1.0 |
0.9–1.6 |
|
10 |
|
|
|
0.4–0.7 |
0.6–1.2 |
|
12 |
|
|
|
0.3-0.45 |
0.4–0.6 |
|
16 |
|
|
|
|
0.3–0.4 |
|
Brass |
1 |
6.0–10 |
8.0–13 |
12–18 |
20–35 |
25–35 |
2 |
2.8–3.6 |
3.0–4.5 |
6.0–8.5 |
6.0–10 |
8.0–12 |
|
3 |
0.5–1.0 |
1.5–2.5 |
2.5–4.0 |
4.0–6.0 |
5.0–8.0 |
|
4 |
|
1.0–1.6 |
1.5–2.0 |
3.0-5.0 |
3.2–5.5 |
|
5 |
|
0.5–0.7 |
0.9–1.2 |
1.5–2.0 |
2.0–3.0 |
|
6 |
|
|
0.4–0.9 |
1.0–1.8 |
1.4–2.0 |
|
8 |
|
|
|
0.5–0.7 |
0.7–1.2 |
|
10 |
|
|
|
|
0.2–0.5 |
Video
