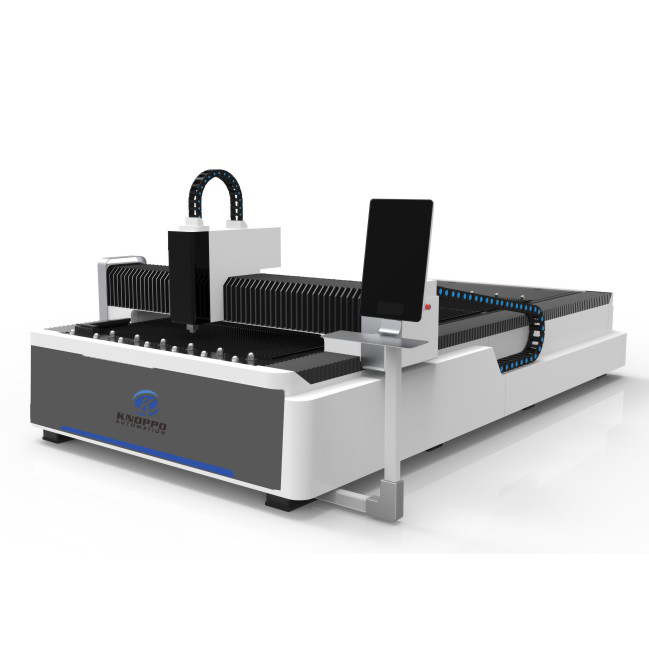

2020 New Style 6000 Watt Fiber Laser Cutting Machine - 1kw 1.5kw 2kw 3kw 4kw Single Table Fiber Laser Cutting Machine – Knoppo Detail:
Features
1. Excellent beam quality: smaller spot size, higher work efficiency and better processing quality;
2. Fast cutting speed: about twice the cutting speed of CO2 laser machine or plasma cutting machine ;
3. High performance : the stable performance was acquired through the application of world’s top fiber laser source which makes it possible to cut at any point with equal quality through fiber transmission.
4. High electrical conversion efficiency: fiber laser cutting machine has 3 times higher electro-optical conversion efficiency than CO2 laser cutting machine, saving energy and protecting environment.
5. Low maintenance cost: fiber transmission without using reflective lenses saves a lot of time in optical path adjustment and achieves maintenance-free results.
Techinical parameters
Model |
KF3015 , KF4020 , KF6015 , KF6020 ,KF6025 |
Wavelength |
1070nm |
Sheet Cutting Area |
3000*1500mm / 4000*2000mm / 6000*2000mm/ 6000*2500mm |
Laser Power |
1000W / 1500W / 2000W / 3000W / 4000W / 6000W |
X/Y-axis Positioning Accuracy |
0.03mm |
X/Y-axis Repositioning Accuracy |
0.02mm |
Max. Acceleration |
1.5G |
Max. linkage speed |
140m/min |
Cutting parameters
Cutting Parameters |
1000W |
1500W |
2000W |
3000W |
4000W |
|
Material |
Thickness |
speed m/min |
speed m/min |
speed m/min |
speed m/min |
speed m/min |
Carbon steel |
1 |
8.0–10 |
15–26 |
24–32 |
30–40 |
33–43 |
2 |
4.0–6.5 |
4.5–6.5 |
4.7–6.5 |
4.8–7.5 |
15–25 |
|
3 |
2.4–3.0 |
2.6–4.0 |
3.0–4.8 |
3.3–5.0 |
7.0–12 |
|
4 |
2.0–2.4 |
2.5–3.0 |
2.8–3.5 |
3.0–4.2 |
3.0–4.0 |
|
5 |
1.5–2.0 |
2.0–2.5 |
2.2–3.0 |
2.6–3.5 |
2.7–3.6 |
|
6 |
1.4–1.6 |
1.6–2.2 |
1.8–2.6 |
2.3–3.2 |
2.5–3.4 |
|
8 |
0.8–1.2 |
1.0–1.4 |
1.2–1.8 |
1.8–2.6 |
2.0–3.0 |
|
10 |
0.6–1.0 |
0.8–1.1 |
1.1–1.3 |
1.2–2.0 |
1.5–2.4 |
|
12 |
0.5–0.8 |
0.7–1.0 |
0.9–1.2 |
1.0–1.6 |
1.2–1.8 |
|
14 |
|
0.5–0.7 |
0.8–1.0 |
0.9–1.4 |
0.9–1.2 |
|
16 |
|
|
0.6-0.8 |
0.7–1.0 |
0.8–1.0 |
|
18 |
|
|
0.5–0.7 |
0.6–0.8 |
0.6–0.9 |
|
20 |
|
|
|
0.5–0.8 |
0.5–0.8 |
|
22 |
|
|
|
0.3–0.7 |
0.4–0.8 |
|
Stainless steel |
1 |
18–25 |
20–27 |
24–50 |
30–35 |
32–45 |
2 |
5–7.5 |
8.0–12 |
9.0–15 |
13–21 |
16–28 |
|
3 |
1.8–2.5 |
3.0–5.0 |
4.8–7.5 |
6.0–10 |
7.0–15 |
|
4 |
1.2–1.3 |
1.5–2.4 |
3.2–4.5 |
4.0–6.0 |
5.0–8.0 |
|
5 |
0.6–0.7 |
0.7–1.3 |
2.0-2.8 |
3.0–5.0 |
3.5–5.0 |
|
6 |
|
0.7–1.0 |
1.2-2.0 |
2.0–4.0 |
2.5–4.5 |
|
8 |
|
|
0.7-1.0 |
1.5–2.0 |
1.2–2.0 |
|
10 |
|
|
|
0.6–0.8 |
0.8–1.2 |
|
12 |
|
|
|
0.4–0.6 |
0.5–0.8 |
|
14 |
|
|
|
|
0.4–0.6 |
|
Aluminum |
1 |
6.0–10 |
10–20 |
20–30 |
25–38 |
35–45 |
2 |
2.8–3.6 |
5.0–7.0 |
10–15 |
10–18 |
13–24 |
|
3 |
0.7–1.5 |
2.0–4.0 |
5.0–7.0 |
6.5–8.0 |
7.0–13 |
|
4 |
|
1.0–1.5 |
3.5–5.0 |
3.5–5.0 |
4.0–5.5 |
|
5 |
|
0.7–1.0 |
1.8–2.5 |
2.5–3.5 |
3.0–4.5 |
|
6 |
|
|
1.0–1.5 |
1.5–2.5 |
2.0–3.5 |
|
8 |
|
|
0.6–0.8 |
0.7–1.0 |
0.9–1.6 |
|
10 |
|
|
|
0.4–0.7 |
0.6–1.2 |
|
12 |
|
|
|
0.3-0.45 |
0.4–0.6 |
|
16 |
|
|
|
|
0.3–0.4 |
|
Brass |
1 |
6.0–10 |
8.0–13 |
12–18 |
20–35 |
25–35 |
2 |
2.8–3.6 |
3.0–4.5 |
6.0–8.5 |
6.0–10 |
8.0–12 |
|
3 |
0.5–1.0 |
1.5–2.5 |
2.5–4.0 |
4.0–6.0 |
5.0–8.0 |
|
4 |
|
1.0–1.6 |
1.5–2.0 |
3.0-5.0 |
3.2–5.5 |
|
5 |
|
0.5–0.7 |
0.9–1.2 |
1.5–2.0 |
2.0–3.0 |
|
6 |
|
|
0.4–0.9 |
1.0–1.8 |
1.4–2.0 |
|
8 |
|
|
|
0.5–0.7 |
0.7–1.2 |
|
10 |
|
|
|
|
0.2–0.5 |
